Characteristic
Configuration selling point
High-power engine, customized large displacement main pump, Weichai + Linde super powerful golden combination + fully electronic control system.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch capacitive touchscreen, featuring a full-fitting IPS screen with wide viewing angles and high brightness, ensuring excellent visibility even under sunlight. The machine also provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, breaker hammers, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.
Parameter

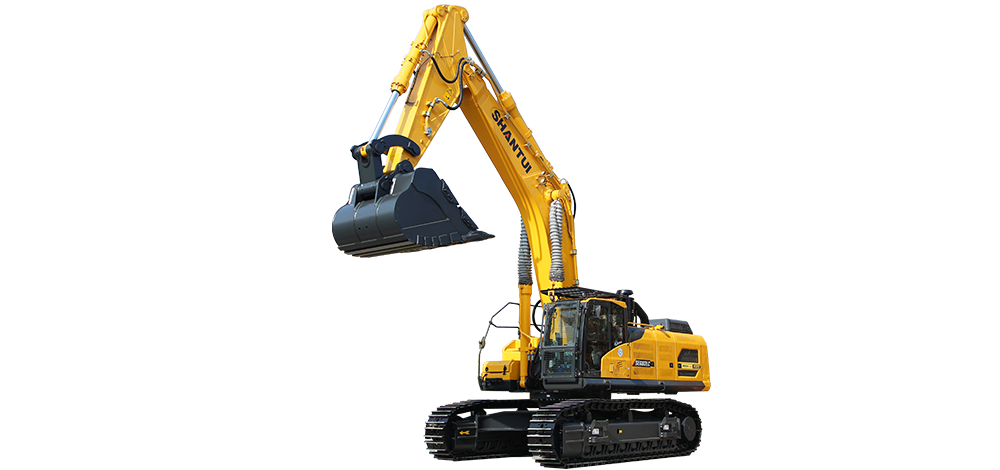

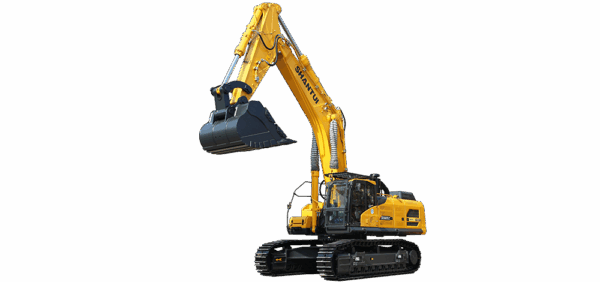

| Parameter | SE680LCW |
|---|---|
| Operating weight(kg) | 66000 |
| Engine power(kW/rpm) | 566/1900 |
| Bucket capacity(m³) | 4 |
| External dimensions(mm) | 12245*3735*4750 |
| Bucket rod digging force(kN) | 350 |
| Bucket digging force(kN) | 420 |
| Rotating speed(r/min) | 0-7.2 |
| Travel speed(km/h) | 3.2/4.7 |
| Maximum digging height(mm) | 10855 |
| Maximum digging distance(mm) | 11520 |
| Maximum digging depth(mm) | 7040 |
| Emissions (Indicated as per international standards) | Eu stage IIIA |
